When producing optical mirror coatings, selecting the right thin-film deposition method is essential. These coatings require precise control over factors like thickness, adhesion, and material purity to ensure optimal reflectivity and durability.

Thin-film technologies are widely used across industries such as microelectronics, optics, medicine, and aerospace. However, the quality of the coatings, as previously mentioned, is heavily influenced by the deposition method, which also directly affects the cost.

Among the various methods, evaporation and sputtering are the most commonly used. In this article, we will explore both of these techniques in detail, particularly in the context of producing optical mirror coatings.

What is Evaporation?

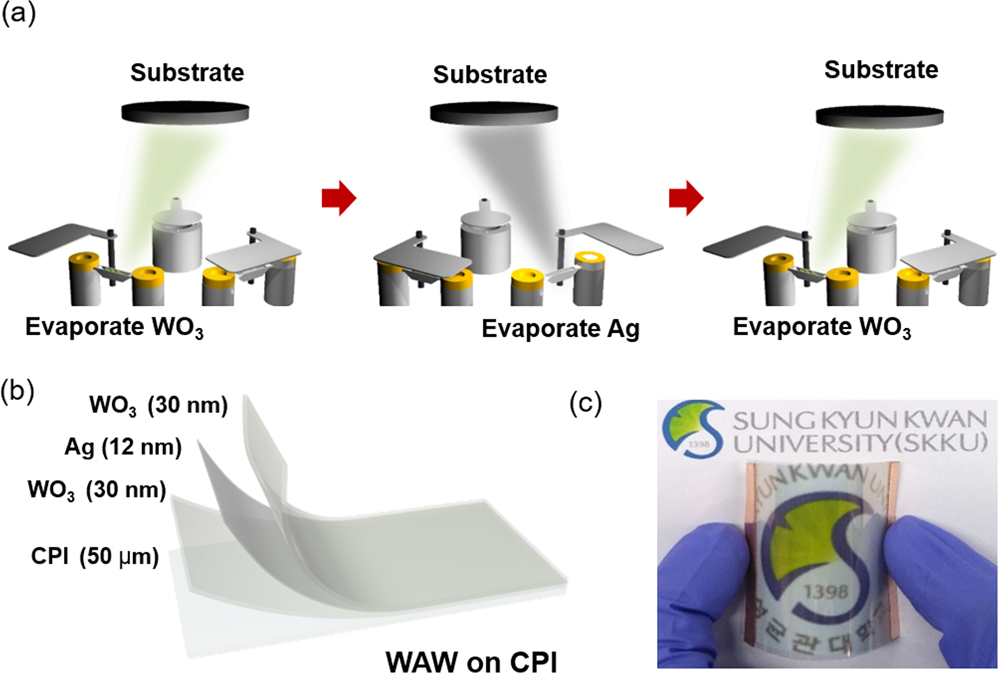

Evaporation is a PVD method where the material is heated in a vacuum (it prevents oxidation and contamination) until it vaporises, then condenses onto the substrate – to form a thin film. Heating can be done either thermally (resistive heating via electric current, that is) or with an electron beam – the latter being particularly good for refractory materials, as it melts the target way more effectively.

Pros and Cons of Evaporation

Evaporation, of course, has its advantages and disadvantages. Let’s start with the first:

• Simple equipment and relatively low cost.
• High deposition rates (up to several microns per minute).
• Produces clean coatings when working with pure metals (Al, Au).

And the disadvantages are as follows:

• Poor adhesion (unless the substrate is properly heated).
• Struggles with complex geometries (low conformality).
• Not that ideal for refractory materials (W, carbides) or multi-component films.

What is Sputtering?

Sputtering is another PVD technique where ions (typically argon) bombard a target, thus ejecting its atoms. These then deposit onto the substrate, forming a thin film.

Sputtering can use direct current (DC, that is) for conductive materials (metals) or high-frequency (RF, that is) sputtering for insulators (oxides, ceramics). The most widespread method, however, is the ‘magnetron’ one, which boosts efficiency by employing a magnetic field.

Pros and Cons of Sputtering

Here, everything will be practically the same – we will go through the similar style as in the case of evaporation, starting with pros:

• Strong coating adhesion.
• Excellent film uniformity. Even on complex geometries.
• Suitable for multi-component systems.

However, the disadvantages are:

• Costly and technically demanding equipment.
• Relatively slow deposition rates.
• Requires tight parameter control for consistent results.

How to Choose the Right Method?

The choice between PVD methods depends on the material type, film requirements, and substrate geometry. Metals, dielectrics, and polymers each need different approaches – due to their varying properties.

When precise thickness control is crucial (such as keeping deviations within 2-5%), magnetron sputtering is the preferred choice, whilst thermal evaporation suffices for somewhat simpler protective or decorative coatings.

Besides, evaporation is well-suited for low-cost optical coatings and research applications, yet sputtering dominates industrial settings, accounting for 60-70% of cases – due to its superior wear resistance and adhesion.

Additionally, sputtering works better with certain substrates, though the heating effects must be carefully considered for heat-sensitive materials. If any.

And in complex scenarios, hybrid methods could be a viable solution; consulting a proper specialist – as well.

But be that as it may, both techniques remain valuable: evaporation offers simplicity and cost-effectiveness, whereas sputtering provides greater versatility and higher quality.
